Chromalox CMB Compact Steam Boilers

Description

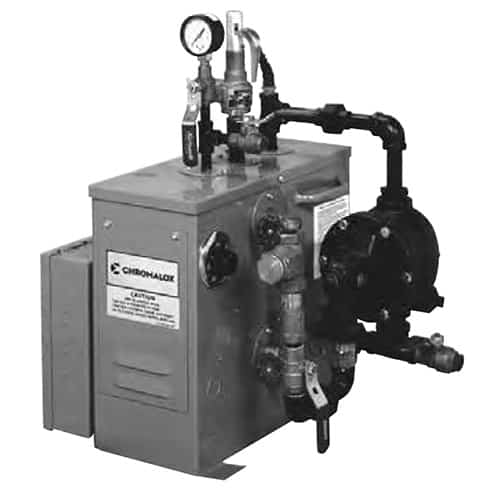

Chromalox CMB

Compact Steam Boiler
  • Steam Pressures to 90 psig
  • Steam Capacity (9 – 45 Lbs/Hr @ 0 – 90 psig)
  • 3 – 15 kW (10 – 51 Mbh)
  • 120, 208, 240 and 480 Volt, 1 & 3 Phase (600V Available)
  • ASME Section I Pressure Vessel Carbon Steel Code “M” (100 psig) (CRN Available)
  • 0.430″ Dia. Copper Sheath Heating Elements with Run Dry Protection
  • Automatic Mechanical Float Valve Water Feeder with Inlet Check Valve
  • Electronic Low Water Cutoff (Single Probe)
  • Water Level Sight Glass and Blow Down Drain Valve
  • Pressure Gauge (0 – 160 psig)
  • ASME Safety Relief Valve
  • Third-party certifications: UL® Listed, CSA®, M

Datasheet

MOD-CMB

Applications

CMB Low Pressure Steam Generator– Delivers 9 to 45 lbs. of steam per hour at 0 – 90 psig, and is used in many manufacturing processes. The CMB’s small size and small capacity make it an ideal “point of use” steam source in industrial plants, computer rooms, laboratories, hospitals, jewelry stores, steam rooms and other spot heating applications. The CMB is also ideal for stand-by operations which require small amounts of steam or humidification during off season periods when the main plant boiler may be shut down.

All CMB steam generators are inspected to rigid quality standards. They are factory tested under operating conditions and are ready to operate.
