Heat Trace System Audits, Inspections, and Lifecycle Management for Industrial Plants

A significant portion of the heat tracing infrastructure in Gulf Coast plants was installed 15 to 25 years ago. Some of it has been continuously maintained. Most of it has been ignored unless it failed. Almost none of it has been formally audited.

A formal heat trace system audit is the highest-value entry point in the heat tracing customer lifecycle. It tells you exactly which circuits are working, which are about to fail, and which are out of compliance with current code. It produces a written report your insurance carrier and may qualify your facility for any loss control credits or premium discounts. And it almost always identifies remediation work that needs to be done before the next freeze season.

We perform formal heat trace system audits for industrial plants across the Gulf Coast region. The audit deliverable is a written report with circuit-by-circuit findings, prioritized remediation, and capital planning support.

What a Formal Heat Trace System Audit Actually Includes

A heat trace audit is not the same as a quick visual inspection. The visual portion is the smallest part of the work. The technical portion involves instrumented testing, documented findings, and a written deliverable.

A complete WilsherCo audit includes:

  • Circuit-by-circuit insulation resistance (megger) testing on every traced circuit, both pre-energization and after de-energization, with measured megohm values recorded per circuit.
  • Voltage and amperage verification under load, comparing measured values against design values from the original engineering documentation (or against calculated values when no original documentation exists).
  • Ground fault current measurement at the panel and at representative circuits, with thresholds compared against current code requirements (typically 30 mA per NEC 427 for personnel protection).
  • Control panel function check: thermostat or RTD setpoint accuracy, alarm contact verification, panel internal wiring inspection, and circuit breaker condition.
  • Cable, splice, and end-seal inspection on a representative sample of circuits, with attention to weather-exposed terminations, ground-level cable damage, and insulation jacket condition where insulation has been removed for inspection.
  • Code compliance gap analysis against NEC Article 427 (Fixed Electric Heating Equipment for Pipelines and Vessels), IEEE 515 (Standard for the Testing, Design, Installation, and Maintenance of Electrical Resistance Heat Tracing for Industrial Applications), UL 515 / UL 515A (cable certifications), and CSA C22.2 No. 130 (Canadian equivalent).
  • Documentation review for any existing system documentation: original engineering drawings, commissioning records, prior audit reports, and remediation history.

The auditor records all findings in real time with documentation. The output is a written audit report, not a verbal summary.

Why Audits Pay for Themselves

Heat trace audits frequently generate two to ten times their cost in identified remediation savings, even before any direct prevention of failure cost. The reasons:

Failed circuits get found before they cause an event

A heat trace circuit that has been silently failing for three winters because the thermostat drifted out of calibration costs nothing visible until the year the freeze comes through and the line splits. A pre-season audit finds the failed thermostat for the cost of a few hours of field labor.

Insurance underwriters credit documented programs

Several Gulf Coast plants we work with have negotiated reduced freeze-event insurance premiums by showing their carrier the annual audit reports and certification documentation. The insurance savings can help offset some of the audit cost outright.

Code-compliance gaps become budgeted upgrades, not emergency rebuilds

Plants that find a UL 515A noncompliant sprinkler heat trace system through a fire marshal inspection are doing the work in a hurry, with whatever contractor is available, at premium prices. Plants that find the same gap through a planned audit can scope the upgrade, get competitive bids, and execute on a planned schedule.

Remediation work becomes capital-budgeted, not opex-stressed

When an audit identifies $300,000 of remediation work, the plant can add it to next year’s capital plan. When that same work surfaces as an emergency three weeks before turnaround, it becomes an expedited operating expense at premium pricing.

The audit is the entry point. The remediation is where the actual value delivery happens.

Heat Trace Audit Process

A Heat Trace Audit helps facility teams evaluate the condition, performance, and reliability of their electric heat tracing systems. We use a structured process that combines documentation review, field inspection, electrical testing, control system evaluation, and practical troubleshooting to identify issues and recommend corrective actions.

1. Gather System Documentation

We begin by compiling the available documentation needed to understand the existing heat tracing system. This may include overall system design criteria, heat trace drawings, panel schedules, cable types, installation records, maintenance logs, and prior inspection or annual assessment reports.

This step helps us understand the original design intent of the system and provides a baseline for evaluating current field conditions. By reviewing the documentation before the field audit, we can better understand how each circuit was intended to operate and identify areas that may require closer inspection.

2. Validate the Plan of Action

Once the documentation has been reviewed, we work with the client to confirm audit priorities and develop a practical plan of action. This includes identifying the locations, circuits, equipment, or process areas that should be evaluated first.

This step is especially important for facilities with large or complex heat tracing systems. By aligning with operations, maintenance, and engineering teams, we can focus the audit on the areas that present the greatest operational risk, have a history of performance issues, or require verification before seasonal operation.

3. Conduct the Field Audit

During the field audit, we inspect and test the heat tracing system to identify visible deficiencies, electrical issues, control problems, and potential failure points.
The audit may include:
Visual inspection of the heat tracing system.
We review the condition of insulation, heat trace cable, connection kits, end seals, junction boxes, control panels, and related components.

From Audit to Remediation: Capital Planning Support

Most heat trace audits identify more remediation work than can be completed in a single fall season. The remediation plan needs to sequence work across multiple budget cycles, plant turnarounds, and operational windows.

We provide capital planning support as part of the audit deliverable. The remediation plan groups work by criticality:

  • Critical (must complete this season): circuits that will fail in a winter event.
  • High (next season or planned outage): circuits that are degraded but functional.
  • Medium (within 2 to 3 years): systemic upgrades and code compliance improvements.
  • Low (lifecycle replacement planning): circuits approaching end of service life.

For plants on multi-year capital cycles, we maintain audit history across years so the planning team can see how the system is aging and budget for replacement work before failures force unplanned spending.

Turnaround-Aligned Audit Scheduling

Heat trace audits done during a planned turnaround are several times more efficient than audits done during normal operations. The reason is access. With process units down and equipment cold, the audit team can de-energize circuits for testing, inspect terminations that are difficult to reach during operations, and coordinate insulation work where insulation needs to be opened for inspection.

We schedule audit work around plant turnaround calendars when possible. For Gulf Coast refineries, this typically means spring or fall outage windows. For chemical plants, the schedule depends on individual unit cycles. For power generation plants, the audit can align with planned outage maintenance.

The Pre-Season Audit Process

Plants that have been running freeze protection for years often discover, the first time we audit them, that 5 to 15 percent of circuits are not actually working. The causes vary: failed end seals, cracked cable jackets, cut lines, drifted thermostats, controllers that have lost their programming, ground faults that the panel never reported.

For freeze protection programs specifically, the audit covers insulation resistance (megger) testing on every circuit; voltage and current verification under load; ground fault current measurement; thermostat and RTD function testing; panel alarm verification; visual inspection of cable, splices, end seals, and connection kits; insulation condition assessment (wet or damaged insulation kills heat tracing performance); and documentation review for code compliance.

Findings are categorized by Pass/Fail and and and repairs are prioritized by severity: critical (will fail this season), high (likely to fail in 1 to 2 seasons), medium (replace at next planned outage), and low (monitor). The remediation plan sequences work by criticality.

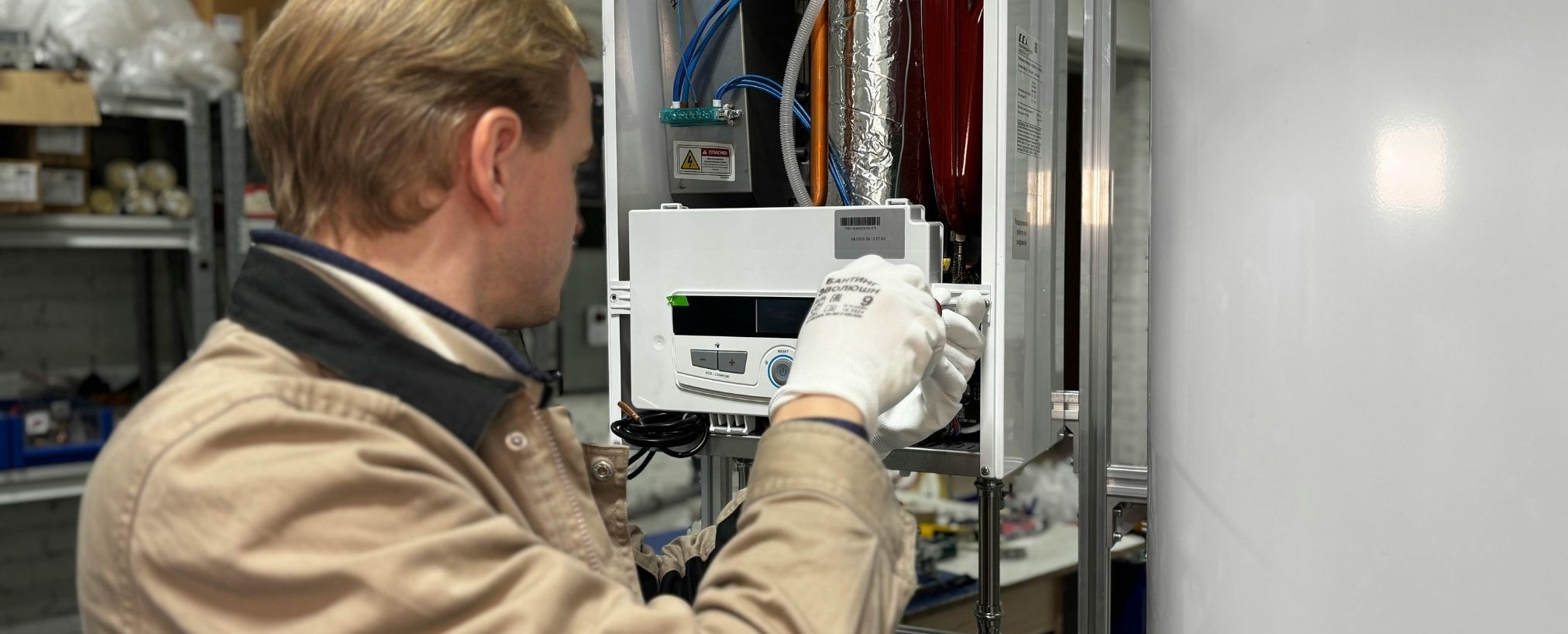

WilsherCo - Aging Infrastructure

Aging Infrastructure: When Your Heat Trace Was Installed Matters

The age of a heat trace system tells you a lot about the audit findings before the audit starts. Some patterns we see:

Systems installed before 2000

Typically have older self-regulating cable that is approaching or past its design life. End seals from this era are often the source of reliability problems.

Systems installed 2000 to 2010

In the middle of their life with reliable cable but aging end seals and controllers. Upgrades focus on panel replacement and ground fault detection.

Systems installed 2010 to 2020

Usually in good condition but may have undocumented expansion work where new piping was added without integrating into the original system.

Systems installed after 2020

Usually in commissioning condition and benefit from baseline audits to establish a reference point for future audits.

The audit methodology is the same regardless of age. The findings vary significantly.

Frequently Asked Questions

Most plants benefit from a full system audit every 1 to 3 years, with annual pre-season inspections in between for freeze protection circuits. Plants with aging infrastructure (15+ years), recent freeze events, or insurance documentation requirements often audit annually.

An inspection is typically a visual walk-down with limited instrumented testing and an informal report. An audit is a formal, instrumented evaluation with megger testing on every circuit, code compliance gap analysis, and a written report suitable for insurance and capital planning use. Inspections are appropriate for routine pre-season checks. Audits are appropriate for capital planning, post-event evaluation, and compliance documentation.

Audit duration depends on the number of circuits and the documentation available. A typical mid-sized industrial plant (200 to 500 circuits) takes 5 to 15 days of field work, plus 1 to 2 weeks for report preparation. Large plants (1,000+ circuits) can take 4 to 8 weeks of field work.

Yes. The audit deliverable is a written report with circuit-by-circuit findings, documentation, and prioritized remediation plan. The report is suitable for insurance documentation, fire marshal inspections, and corporate risk management filings.

Yes, and we encourage it. Turnaround-aligned audits are several times more efficient than audits during normal operations because the audit team has full access to de-energized circuits and exposed terminations.

We document the gap with the specific code reference, photograph the condition, and include the remediation in the prioritized plan. We are happy to perform the remediation work under our Turnkey Heat Tracing Design-Build Solution, but you are also free to use the audit report to scope competitive bids from other contractors.

Audit cost depends on plant size, circuit count, and existing documentation. For a typical mid-sized industrial plant, audit fees run in the low five figures. For large plants with 1,000+ circuits, audit fees scale accordingly. The audit cost is almost always a small fraction of the remediation savings the audit identifies.
