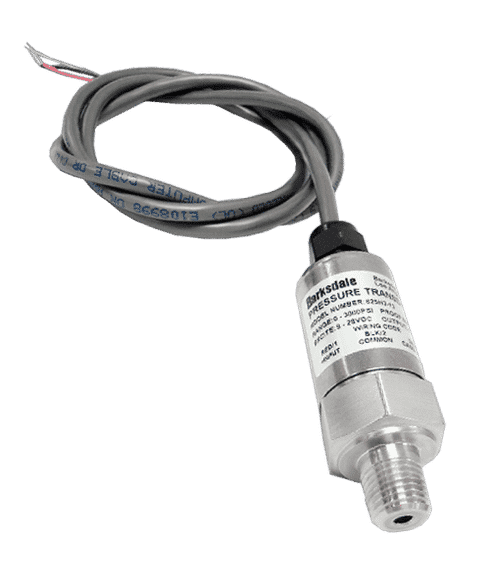

Barksdale OEM Pressure Transducer 626H3-05

Description

Barksdale’s Series 600 is the ideal solution for applications that require a low cost, accurate, reliable transducer in a small package. Where long term stability is a requirement, the Series 600 transducer delivers. With a robust ceramic sensor that excels in rugged environments, the Series 600 offers high accuracy at 0.5% FSO and thermal stability within .06% over the entire operating range of -40 to 185° F. Wetted materials of 316 stainless steel, ceramic and Viton® make it ideal for use with aggressive media. The Series 600 family is rated NEMA 4X, UL approved and is available in pressure ranges from 0-30 to 0-8700 psig and a variety of standard outputs: 4-20 mA, 0.5-5.5 VDC, 0.5-4.5 VDC ratiometric, 1-11 VDC and 0-10 VDC.

Literature & Documentation

Datasheet: series-626–ds

Call For Price

Special Pricing: Please contact sales@wilsherco.com for bulk order discounts and OEM / reseller special pricing.

Standard Lead Time: Please call or email sales@wilsherco.com for current availability.
