Barksdale Series C9612 Sealed Piston Pressure Switch, Housed, Single Setpoint, 250 To 3000 PSI

Description

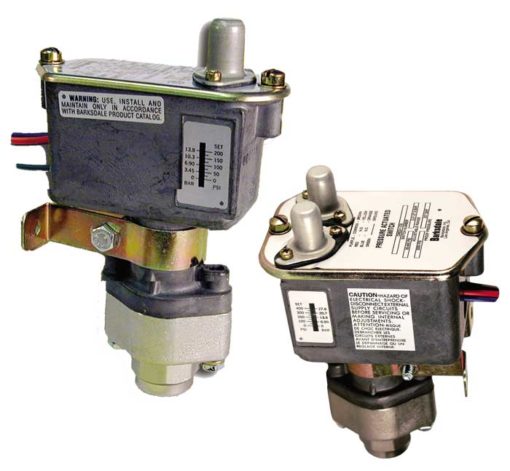

Barksdale’s Series C9612 and C9622 Sealed Piston Pressure Switches offer extremely long life in a robust package, making them the ideal solution to your industrial pressure control needs. Sealed Piston switches are ideal for applications demanding rapid cycling. Available in various pressure ranges from 15 to 3000 psi, sealed piston switches are suitable for use in industrial applications such as hydraulic presses, compactors, and machine tools. All models feature a durable, anodized aluminum enclosure with a tamper proof adjustment screw cover and an integrated 27/32″ hole for 1/2″ NPT conduit connector, and are rated to NEMA 3 as a standard.

Optional terminal boxes allow for ease of electrical connection, and switches are available in both single and dual circuit configurations. For applications requiring a highly accurate switch in a durable package, Barksdale’s Series C9612 and C9622 Sealed Piston Pressure Switches are the ideal choice

Technical Specifications

Accuracy: ± 2% of the adjustable range

Electrical Connectors: 18″” free leads

Pressure Connection: 1/4″” – 18 NPT female

Switch Type: SPDT snap action

Single Setpoint Rating: 10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC

Wetted Parts O-ring: Buna-N (standard)

Process Fitting: Nickel plated aluminum

Piston: 416 stainless steel

Enclosure: Anodized aluminum

Accuracy: ± 2% of the adjustable range

Electrical Connectors: 18″” free leads

Pressure Connection: 1/4″” – 18 NPT female

Switch Type: SPDT snap action Single Setpoint Rating: 10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC

Wetted Parts O-ring: Buna-N (standard)

Process Fitting: Nickel plated aluminum Piston: 416 stainless steel

Enclosure: Anodized aluminum

Accuracy: ± 2% of the adjustable range

Electrical Connectors: 18″” free leads

Pressure Connection: 1/4″” – 18 NPT female

Switch Type: SPDT snap action

Single Setpoint Rating: 10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC

Wetted Parts O-ring: Buna-N (standard)

Process Fitting: Nickel plated aluminum

Piston: 416 stainless steel

Enclosure: Anodized aluminum

Accuracy: ± 2% of the adjustable range

Electrical Connectors: 18″” free leads

Pressure Connection: 1/4″” – 18 NPT female

Switch Type: SPDT snap action

Single Setpoint Rating: 10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC

Wetted Parts O-ring: Buna-N (standard)

Process Fitting: Nickel plated aluminum

Piston: 416 stainless steel

Enclosure: Anodized aluminum

Adjustable Range
Decreasing – psi (bar) Increasing – psi (bar)
Min Max Min Max
-0 15 (1.0) 170 (11.6) 18 (1.2) 200 (13.6)
-1 35 (2.4) 340 (23.1) 40 (2.7) 400 (27.2)
-2 125 (8.5) 1360 (92.5) 135 (9.2) 1500 (102.0)
-3 250 (17.0) 2650 (180.3) 280 (19.0) 3000 (204.1)
