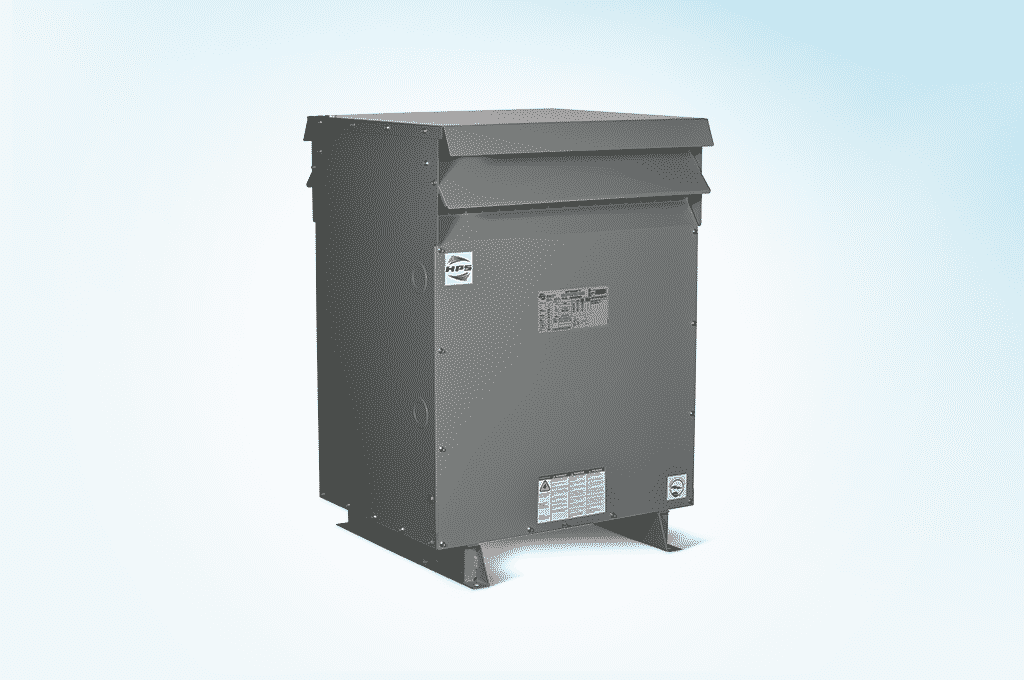

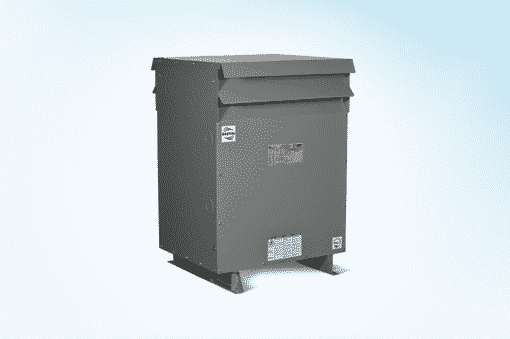

Hammond Power Solutions HPS Millennium™ G VPI – Up to 5kV Class MV Transformer
Description
HPS Millennium™ G transformers are rated for 2400 to 4160 volts. They are designed for commercial, industrial, or renewable energy applications. The standard NEMA 3R ventilated construction is ideally suited for indoor or outdoor applications.
Uses
- Meets North American Energy Efficiency Standards: U.S. – DOE 10 CFR Part 431 (DOE 2016); Canada – SOR/2018-201, Amd. 14 (NRCan 2019) & ON Reg. 404/12.
- Ratings from 15-1500 kVA
- High voltage: Up to 5kV Class; Up to 45kV BIL
- Low voltage: 208Y/120V to 600Y/347V, 10kV BIL
- 60 Hz frequency (others available upon request)
- 220 deg. C (150 deg. rise) typical, 200 deg. C (130 deg. C rise) for some lower kVA units
- Type 3/3R (Type 4/4X or Type 12 available. Enhanced Type 3R option available for improved outdoor performance.
- Front accessible separate high and low voltage terminals; connectors suitable for aluminum and copper are provided for easy cable installation
- Meets NEMA ST-12 standards
- UL Listed, CSA Certified
Standard Lead Time: contact sales@wilsherco.com for an estimate
Please contact sales@wilsherco.com if you’re an OEM or reseller for additional discounts.
