GESTRA UNA Ball-Float Steam Traps

Description

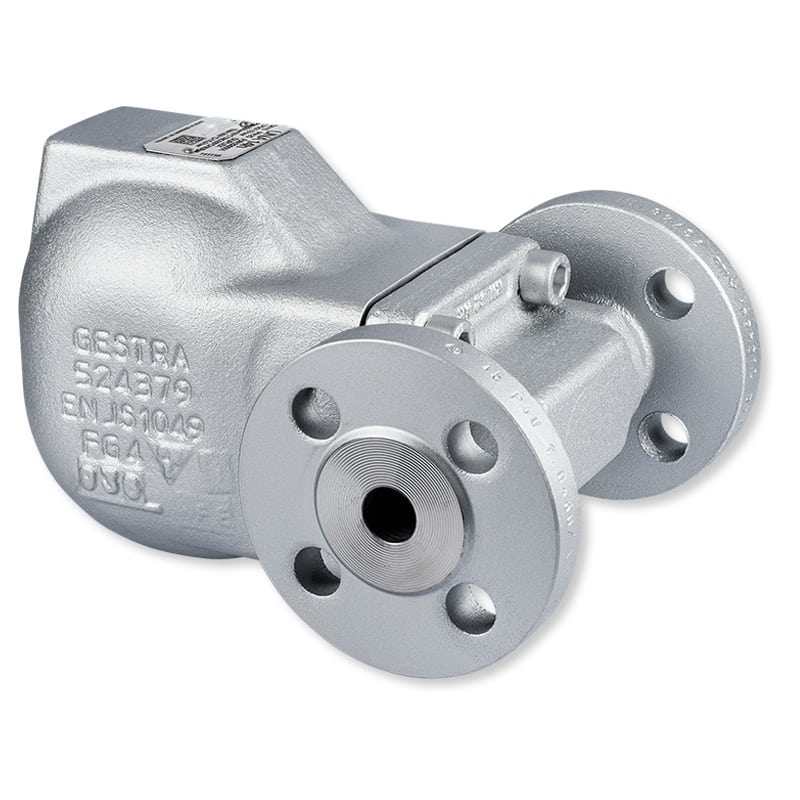

Ball-Float Steam Traps UNA


Steam traps with ball float for removing condensate from steam, cold condensate or distillates without banking-up

The traps with the tried and tested rolling ball seal work with exceptionally low friction and therefore have very low actuating forces. They are durable and guarantee maximum tightness.

Datasheet

una_en

Uses

Universal steam trap for virtually all requirements. Especially recommended for the drainage of:

  • Steam-regulated heat exchangers
  • Systems with a high condensate flowrate
  • Steam manifolds
  • Steam driers, gas driers, cyclone separators
  • Systems with very small operating pressures, very low differential pressure and extremely variable operating conditions
  • Vacuum systems
  • Gas and compressed air lines
  • Drying cylinders

The series is also ideal as a discharge controller on flash tanks and feedwater tanks.
